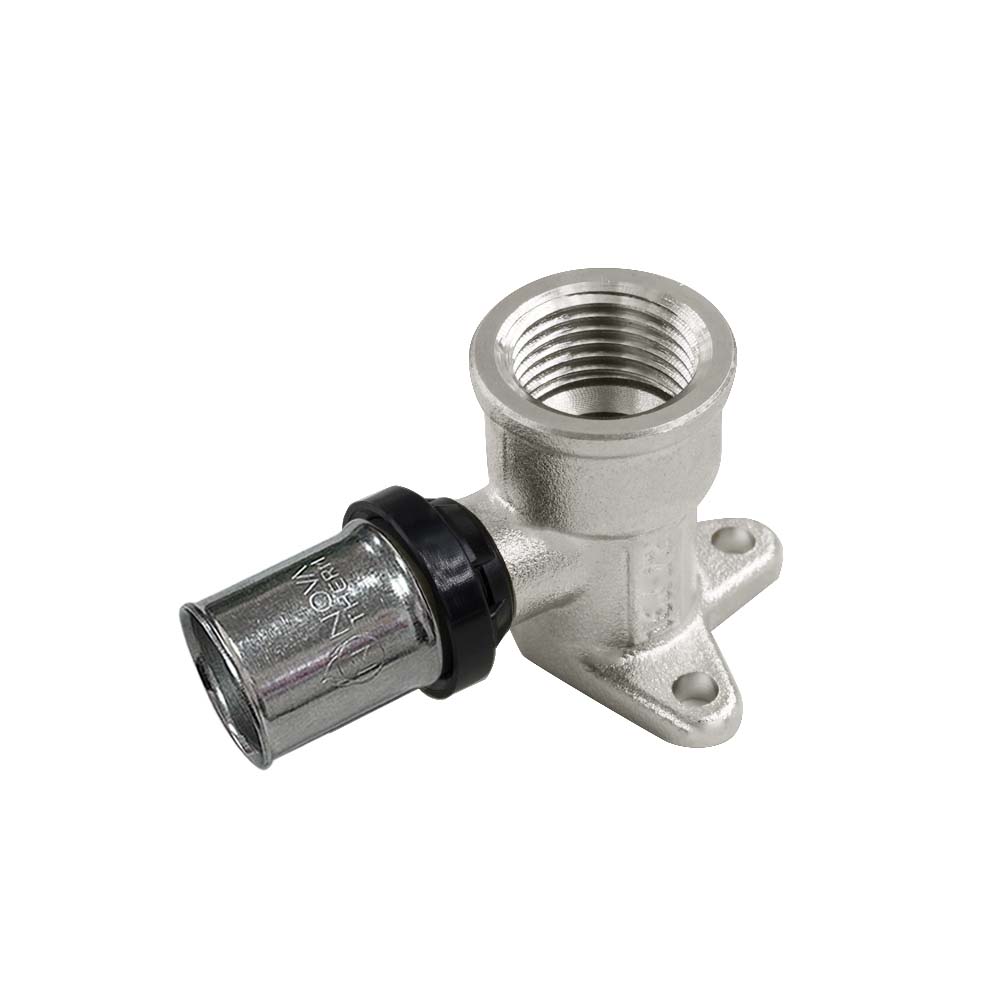

Female Wall Plated Elbow 15mm - 1/2"

The Female Wall Plated Elbow 15mm - 1/2" press fitting is a plumbing component designed to provide a reliable connection between a 15mm pipe and a 1/2-inch female-threaded component. It features an elbow design, which allows for a 90-degree change in direction for the plumbing pipe, making it ideal for applications where the plumbing needs to be routed around corners or where space constraints require a directional shift.

The wall plated feature refers to the fitting being designed for use against a wall or similar surface, with a plate that helps secure it in place, ensuring a neat, stable installation that minimizes movement. The press-fit technology offers a quick, secure, and reliable connection method, eliminating the need for soldering, heating, or sealing tapes. This makes it an excellent choice for both professional and DIY plumbing projects.

Key Features and Description:

1. Material:

   • The Female Wall Plated Elbow 15mm - 1/2" press fitting is usually made from brass or stainless steel, both of which are corrosion-resistant and durable materials well-suited to plumbing applications.
   • These materials ensure that the fitting will perform reliably in a variety of water conditions, as well as under high pressures and temperatures commonly found in plumbing and heating systems.

2. Size and Configuration:

   • 15mm refers to the 15mm pipe connection on one side of the fitting. This side is designed to connect to 15mm pipes, which are typically used in domestic plumbing for water supply lines, radiator circuits, and underfloor heating systems.
   • 1/2" refers to the 1/2-inch female-threaded connection on the other side of the fitting. This side has an internal thread designed to connect to 1/2-inch male-threaded components, such as valves, manifolds, taps, or pumps.
   • The elbow design allows for a 90-degree change in direction, ideal for tight spaces or situations where a change in pipe direction is needed, such as corner fittings in a wall-mounted plumbing system.

3. Press-Fit Technology:

   • The press-fit system is the key feature of this fitting, allowing for a fast and secure connection without the need for heating, flux, soldering, or sealing compounds like PTFE tape.
   • The press-fit system uses a press tool to compress the fitting onto the pipe, creating a tight, permanent, leak-proof seal. This eliminates the traditional risks of soldering, such as heat damage or leaks, while offering a faster, cleaner installation process.

4. Wall Plated Feature:

   • The wall plated feature ensures that the fitting can be securely mounted to a wall or surface, offering stability and preventing any movement after installation. It is particularly useful for plumbing setups where the fitting is exposed or needs to be anchored to a surface to ensure proper alignment and functionality.

5. Applications:

   • This fitting is ideal for use in applications where a 90-degree directional change is needed and where space constraints or installation against a wall are factors. Some typical applications include:
     • Domestic Plumbing: Connecting 15mm pipes to 1/2-inch male-threaded components, such as faucets, taps, and shower heads, in wall-mounted plumbing systems.
     • Underfloor Heating (UFH): Where a 15mm pipe must be connected to components like manifolds or valves with a 1/2-inch male-threaded connection, with a directional change required.
     • Radiator Connections: Connecting 15mm pipes to 1/2-inch male-threaded radiator valves or other heating system components where a directional shift is needed to fit the system layout.
     • Kitchen and Bathroom Installations: Connecting pipework to fixtures such as sinks, toilets, or taps, where an elbow and secure, stable fitting are required against a wall.

6. Advantages:

   • Quick and Reliable Installation: The press-fit technology eliminates the need for heating or soldering, reducing installation time and minimizing the risk of installation errors, such as poor solder joints or leaks.
   • Leak-Proof Seal: Once pressed, the fitting creates a permanent, leak-proof seal that ensures long-term performance without the need for sealing tapes or compounds.
   • Corrosion Resistance: Made from durable brass or stainless steel, the fitting is resistant to corrosion, which enhances its lifespan and ensures reliable operation even in systems with aggressive water conditions.
   • Cleaner and Safer Installation: The installation process is cleaner and safer than traditional methods since there is no need for open flames, soldering, or messy flux, reducing the risk of fire hazards or accidents.
   • Space-Saving and Stable: The wall plated feature helps to stabilize the fitting in place, making it ideal for use in confined spaces where the pipe must be secured to the wall.

7. Compatibility:

   • The Female Wall Plated Elbow 15mm - 1/2" press fitting is compatible with a wide range of pipe materials, including copper, PEX, and multilayer pipes, making it suitable for various plumbing and heating systems.
   • Its 1/2-inch female thread is compatible with standard 1/2-inch male-threaded components, providing flexibility for use in different types of plumbing installations.
